Unicon Vision 360 Degree Panoramic Camera Support Image Split View CCTV IP Fisheye Camera

FOB Reference Price:Get Latest Price
$58.00 - $65.00 / Piece | 1 Piece/Pieces ip camera (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Unicon Vision
Model Number:
UN-HD6300P
Type:
IP Camera
Special Features:
Vandal-proof
Sensor:
CMOS
Style:
Dome Camera
Product name:
3mp ccctv ip fisheye camera
DSP:
XM3881C+AR0330
Lens:
1.4mm fIsheye 360 degree lens
Resolution:
2048*1520
Image Sensor:
1/2.5" 3MP progressive scan CMOS
IR Distance:
3pcs IR Array 20 meters
POE:
YES
SD card:
N/A
Certificate:
CE FCC RoHs
Warranty:
3 Years warranty
Technology:
Panoramic
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month 3 years warranty
Packaging & Delivery
Packaging Details
1PCS/CTN
Port
Shenzhen
Lead Time :
5 working days
Product Description

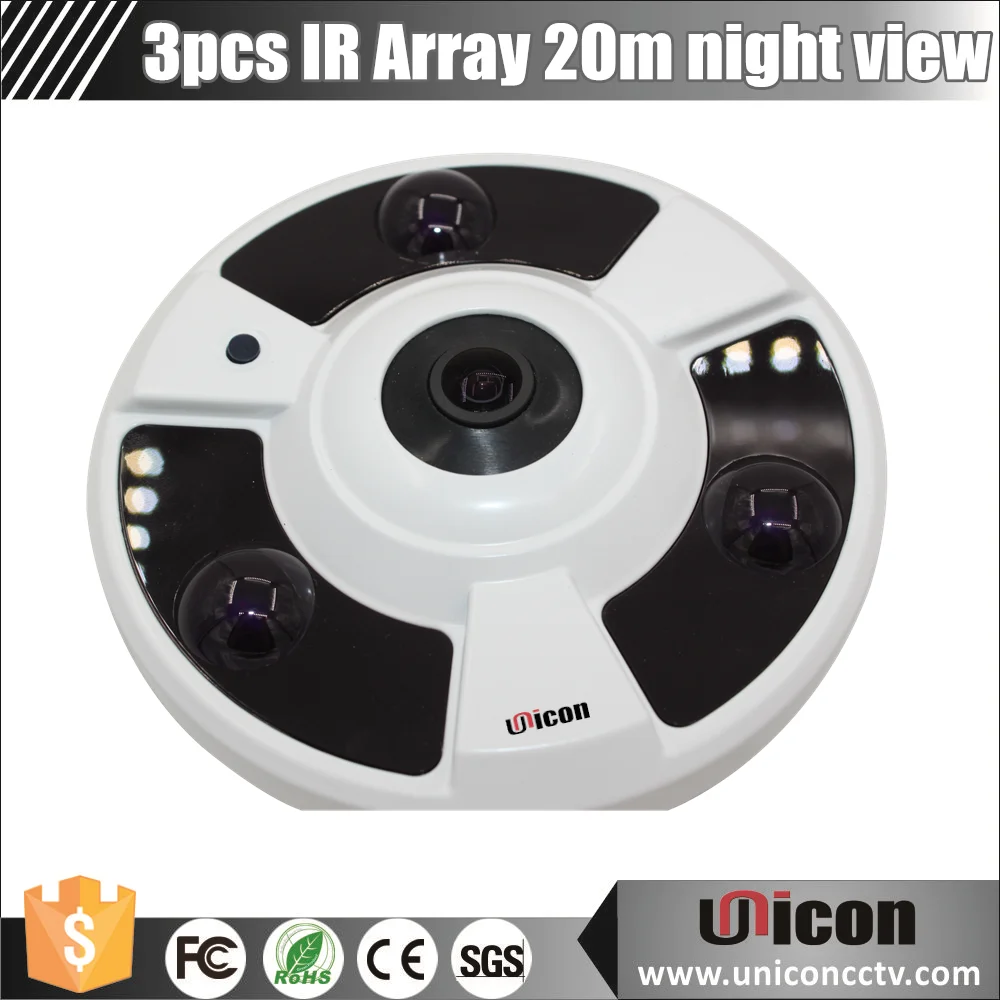

Unicon Vision 360 Degree Panoramic Camera Support Image Split View CCTV IP Fisheye Camera

Key Features:

1. UP to 3 megapixel resolution(2048*1520)
2. Max 30fps
3. H.264High Profile @4Level
4. Day/Night(ICR)&3D DNR&AWB&AGC&BLC
5. IR range(20m)
6. 1.4mm 5MP fIsheye 360 degree lens
7. Support mobile phone monitoring and P2P function
8. PoE function
9. IP66 rating





360 fisheye3mp fisheye camera



Specification :

Media Processor

Hisilicon Series High Performance DSP

Image Sensor

1/1.4” 5MP progressive scan CMOS

Shuttle time

1/5s to 1/50,000s

Min Illumination

Color : 0.1Lux @ F1.2 AGC On B/W : 0.001Lux@ F1.2 AGC On

D/N

IR cut filter with auto switch

Video compression

H.264/MJPEG

Frame Rate

First stream: 30fps@(2048 × 1520),30fps in dewarping;

Stream

Dual streams

Image Setup

Auto white balance, Auto Gain, Auto Shutter

Intelligent Alarm

Motion detection, tampering alarm, network disconnect, storage exception

Protecol

IPv4/IPv6/RTSP/RTP/RTCP TCP/UDP HTTP DHCP DNS
FTP DDNS PPPoE SMTP QOS Onvif

Browser

IE(8/9/10/11), Chrome, Firebox, Safaribetc etc

General Function

Linux/Windows C++/C SDK

Audio in/out

1-channel/1-channel

Alarm

1 in/1 out

Video Out

1Vp-p Composite Output

Reset

A reset button (press and hold 3 seconds valid)

Impact-resistant Level

IP66

Dimensions(mm)

160 x 45.99mm

Weight (kg)

0.6 (net weight)

Working conditions

-40~60 degree, humidty less than 95%











































































360 degree fisheye



Round viewing performance :



360 fisheye2



Image split :



360 Fisheye



Buying Guides

 buying guide.png



Payment terms :


Company Information

Unicon Vision Technology Co.,Ltd. is a professional HD security products provider. Experienced team devote all of our energy to developing better security products for society and customers.

Unicon Vision specialized in Multi-sensor Stitching Panoramic IP Camera, 4 lens 180 degree, 5/8 lens 360 degree Panoramic in high resolution 10MP, 15MP, 24MP and 100MP.

The latest technology we combined 8 lens Panoramic camera with 30X optical zoom PTZ camera to build the world first Vehicle Pano & PTZ System.



 factory

Customer (2)

Packaging & Shipping

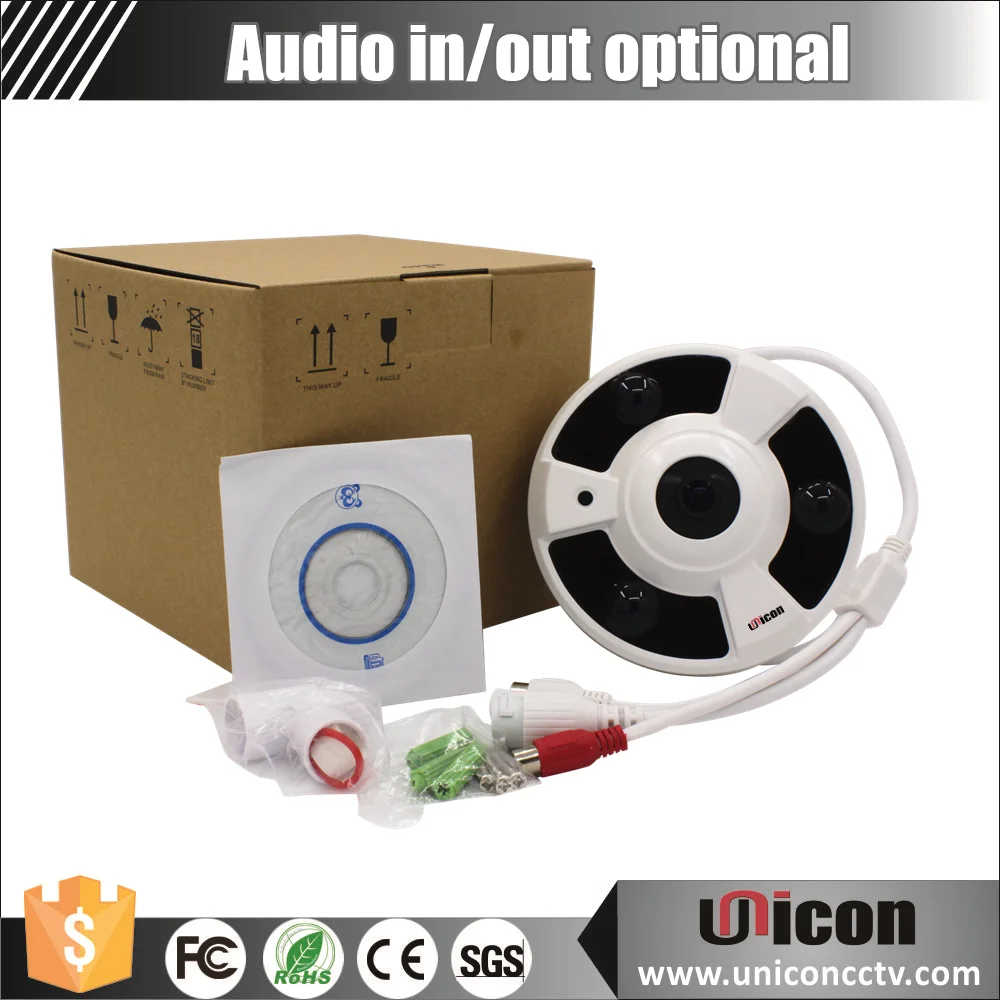

 ahd dome camera packing
